  • The sketch tool of PRO/E in detail




    •  HOW TO SKETCH A 2-D FIGURE USING SKETCH TOOL:
    • Used for all features
    • The 2-D drawing  is converted into 3-D by applying features to it like extrude,revolve,blend,sweep,swept blend etc
    • Pretty easy
    • Step by step process is mentioned below!!!

    • Select the sketch option as shown above in the right sidebar.

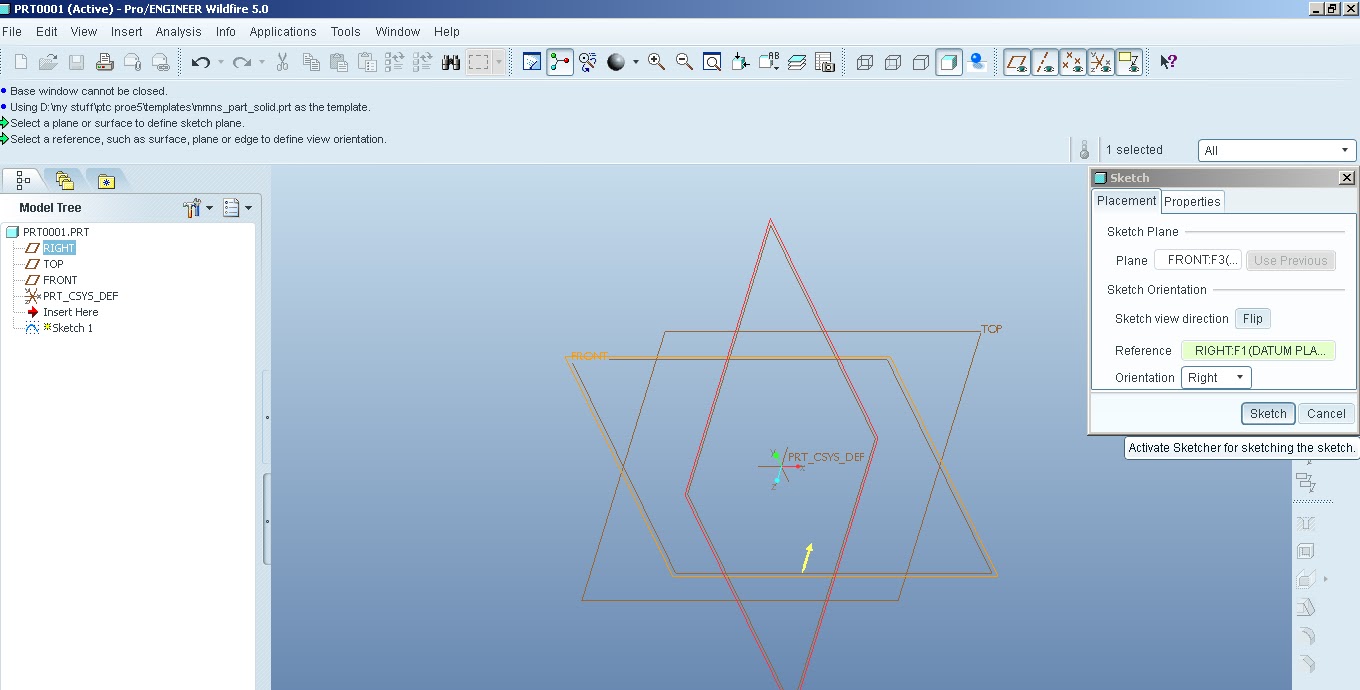

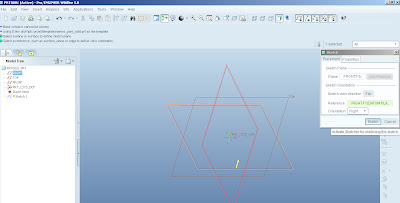

    • Select a plane and the direction of orientation as shown below!

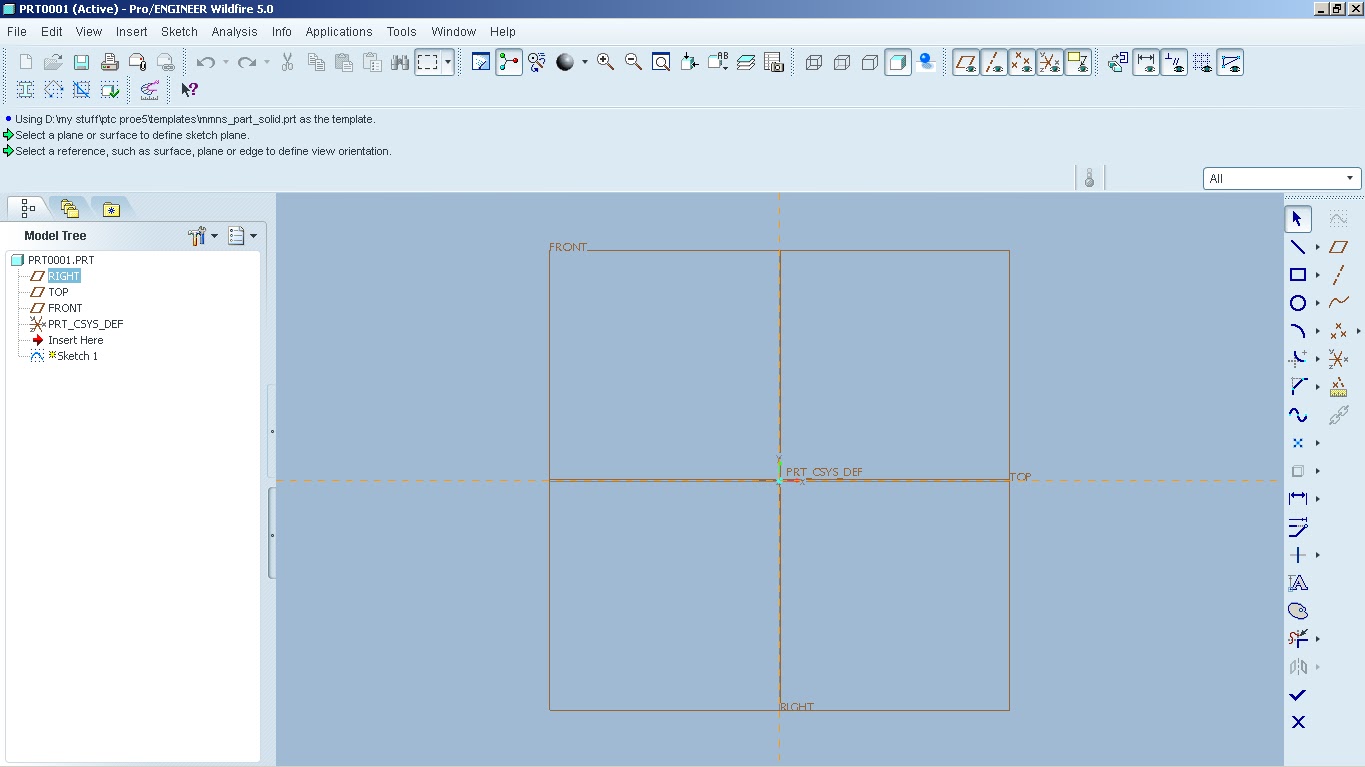

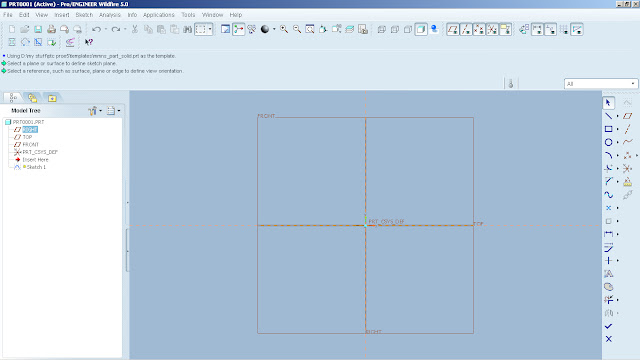

    • You will get a screen as shown below.

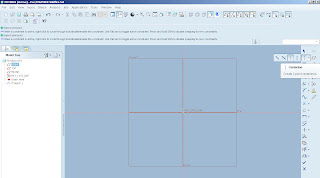

    • First step to start with is to create 2 center lines as x and y axis.Trust me...its really useful
    • Drawing options are on the right sidebar...


    • to modify the dimensions


    • Define a dimension






    • This is awesome!!




    • to create a line


    • rectangle/parallelogram


    • circle/ellipse


    • to create an arc


    • Select any two collinear lines after selecting the  option..then modify the diameter to create a rounded edge.This is called 'fillet'!







    • The trim and the symmetry tool.



    After creating a sketch press ok...and then to insert a feature go to [insert]---->any feature...you will be directly asked the requirements or in case of extrude you will find an extrusion on your sketch..press tick and you are done!!!!
