  • How to use Revolve in pro engineer/ creo

       The nex best and basic feature after extrude is revolve. It goes this way! The closed 2-D sketch which you draw revolves around an axis(geometric center line in creo) upto a specified angle and creates a solid or a surface you desire.


    Here you go!!

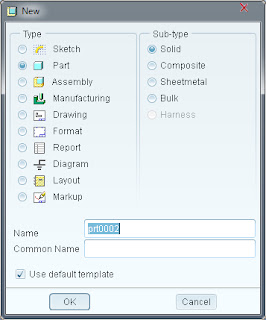

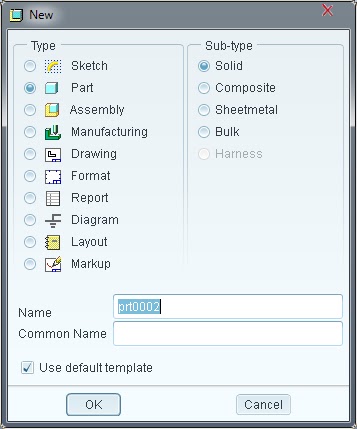

    • Select [File] --> [New] from the menu bar. The dialog shown below will pop up.
    • Uncheck use default template option and pres ok,select units mmns/inlbs based on your requirement.

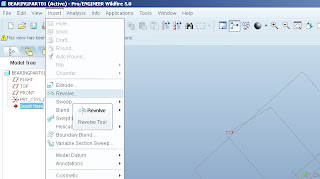

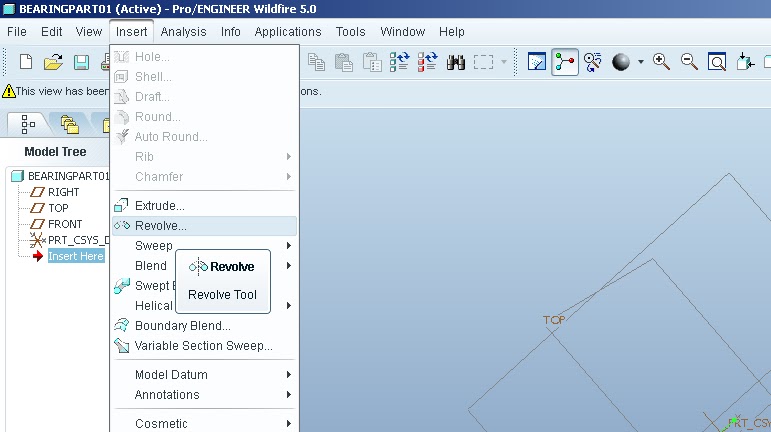

    • Select the revolve option from[insert]--->revolve or from the side bar.

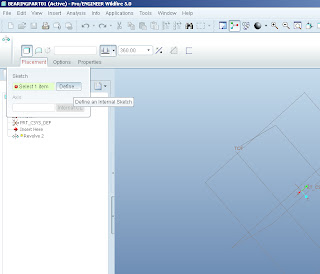

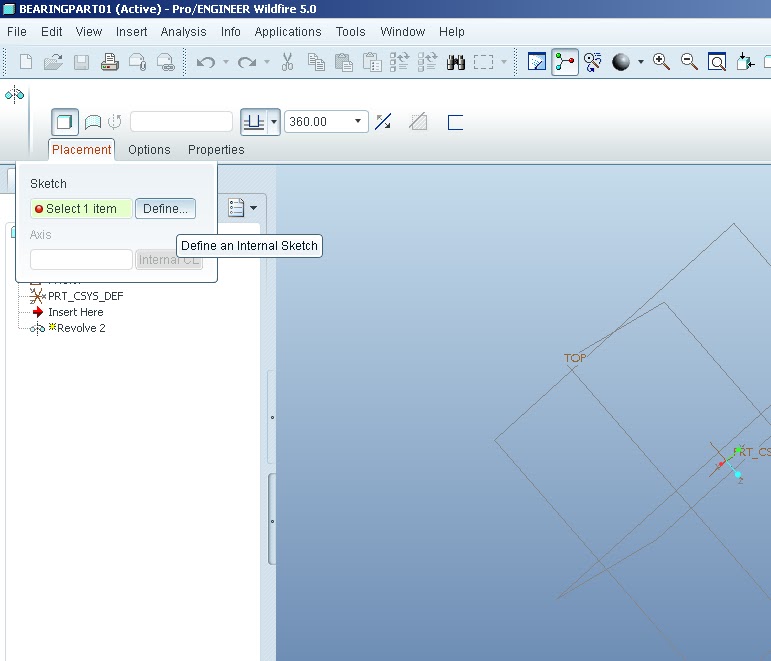

    • You can always edit a sketch by going to sketch option or clicking on define on placement as shown

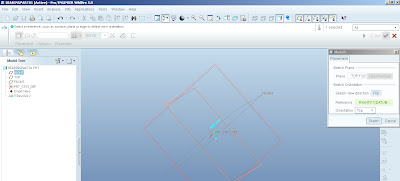

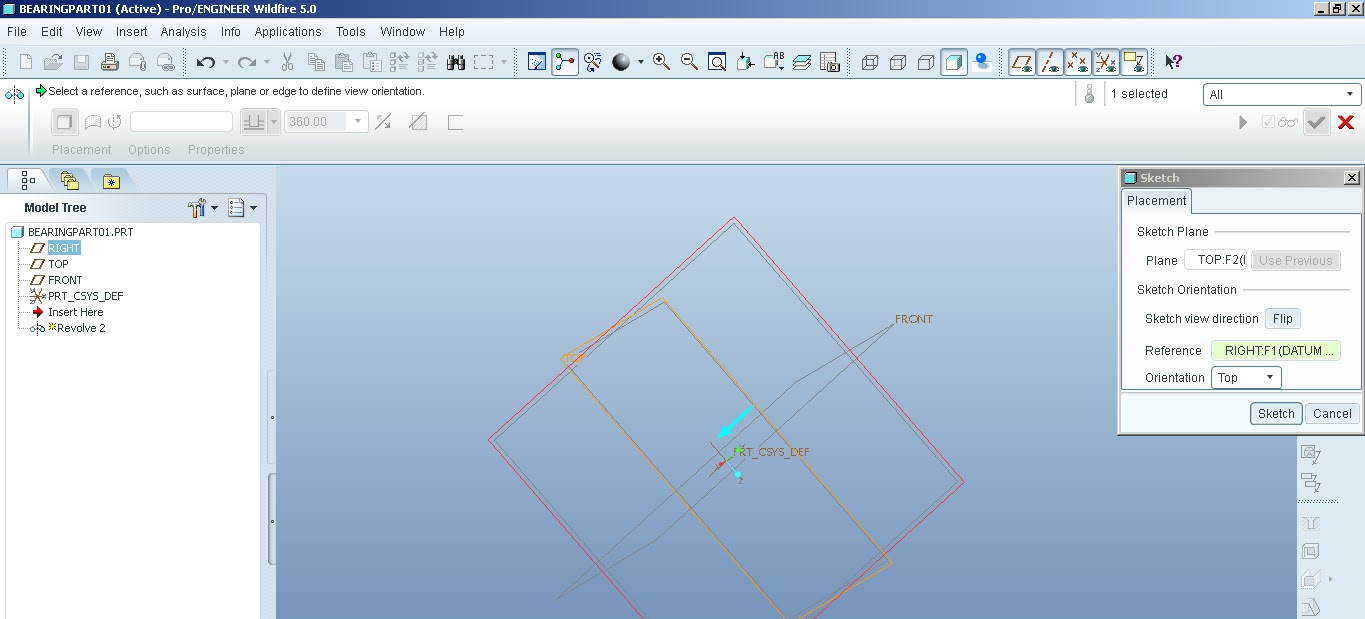

    • Now select the plane and the direction in which you want to sketch and press sketch as shown

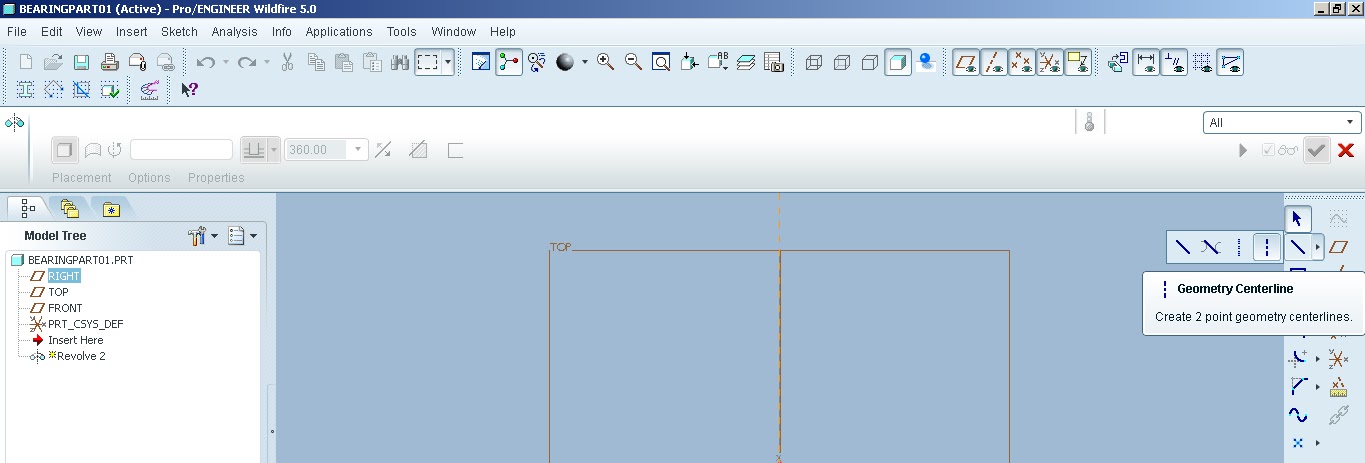

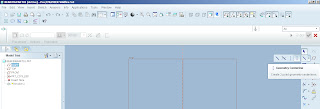

    • Now comes an important thing you need to define! Yeah...you are right...you need to give a center line about which your sketch rotates.
    • Proceed with drawing a sketch(*closed*) on any one side of the centerline(can draw it on either side also but should be symmetric...otherwise 'sometimes' you get an error).

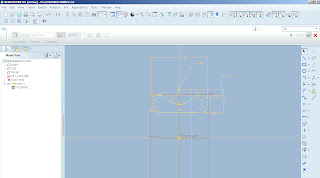

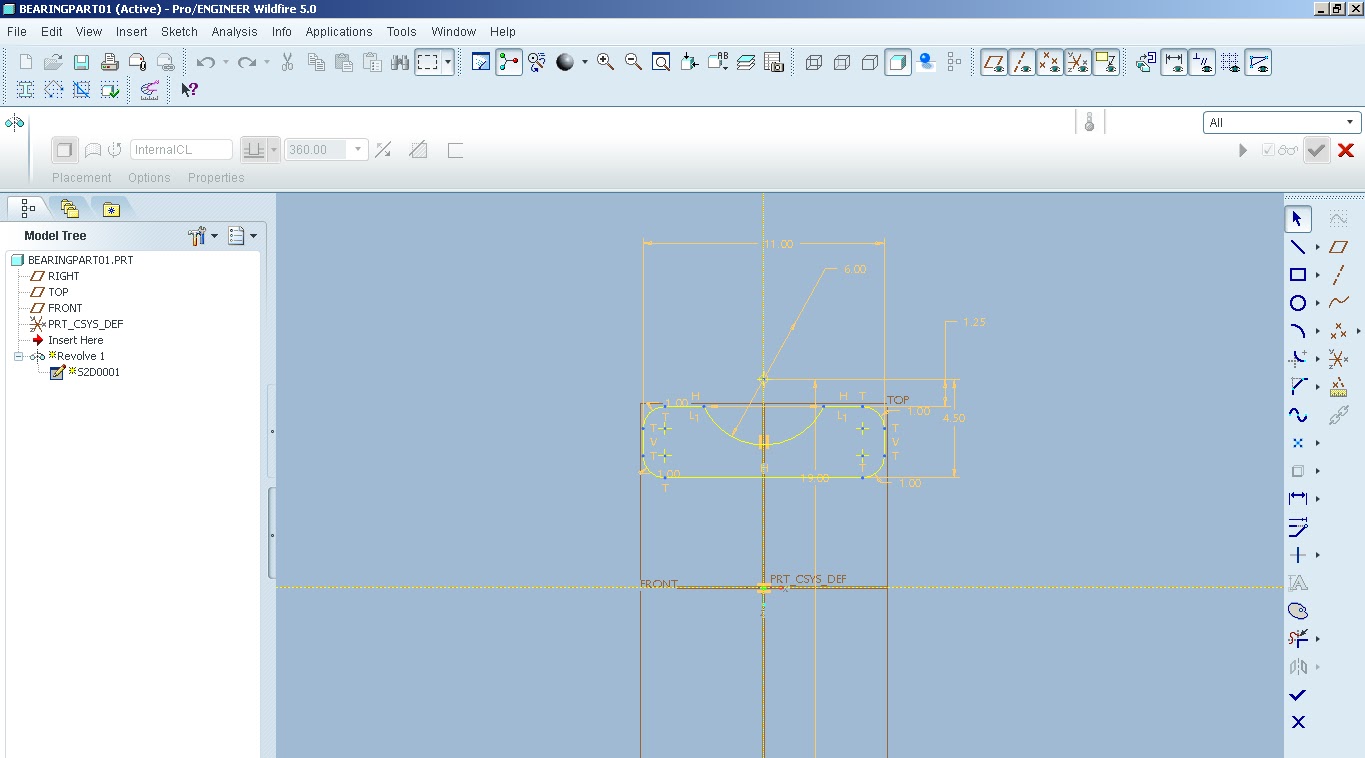

    this is my sketch with a horizontal center line

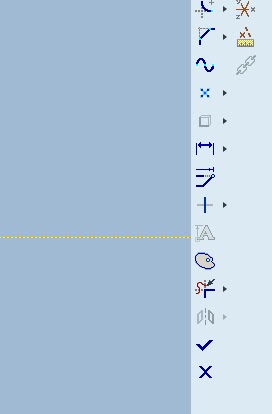

    • Press the tick button

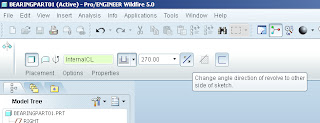

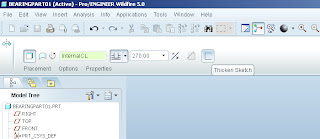

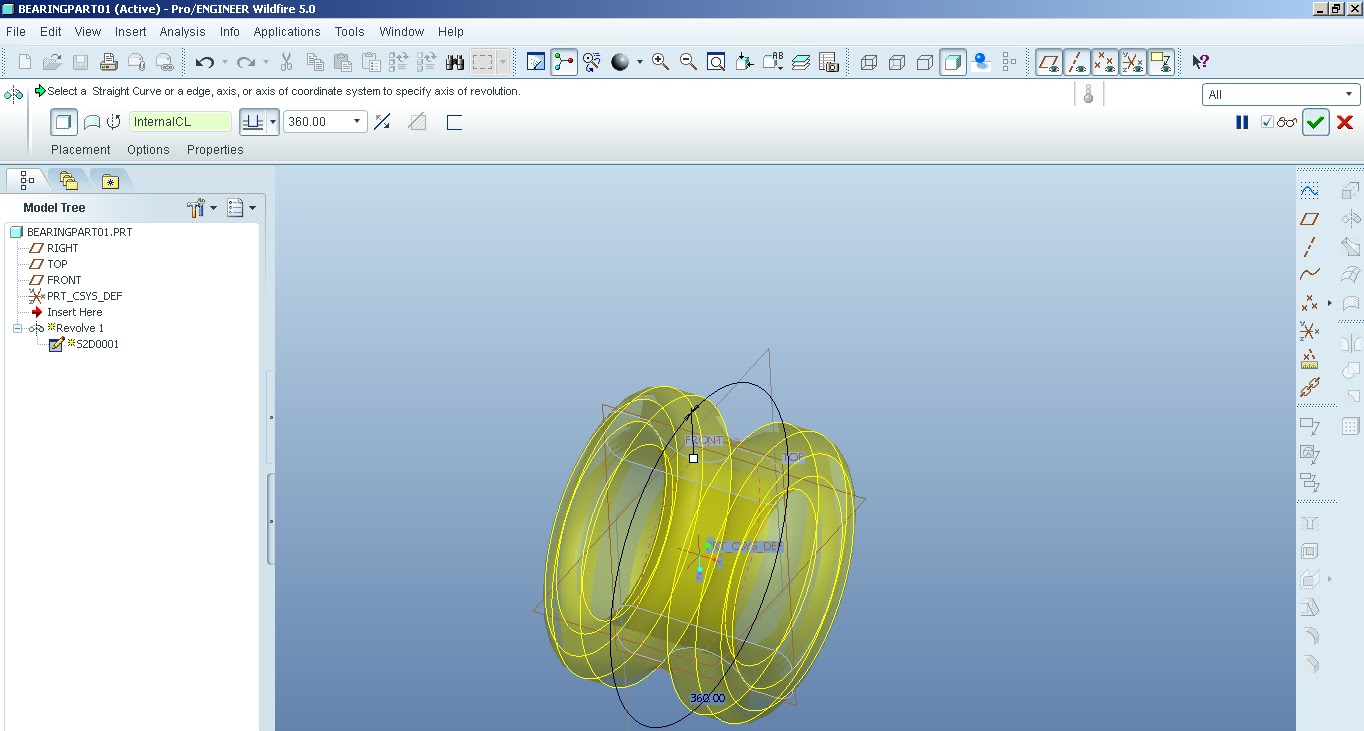

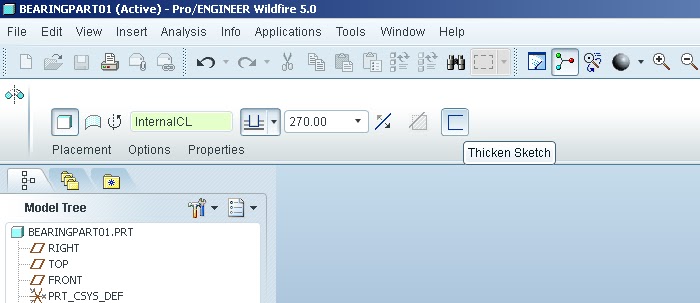

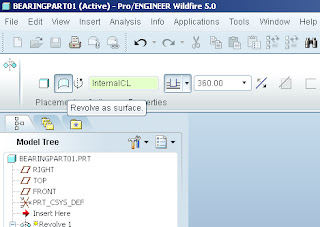

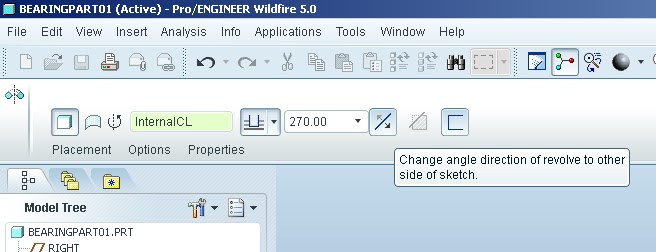

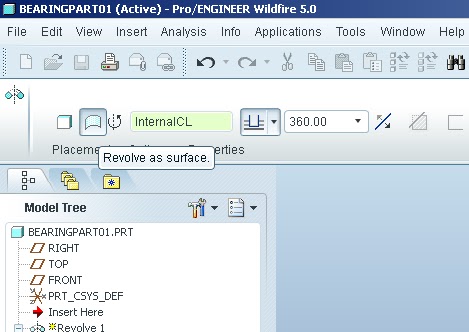

    • You are almost done.....If you want to modify the design go for the options as shown below!!










    • After you are done press the green tick button!!!

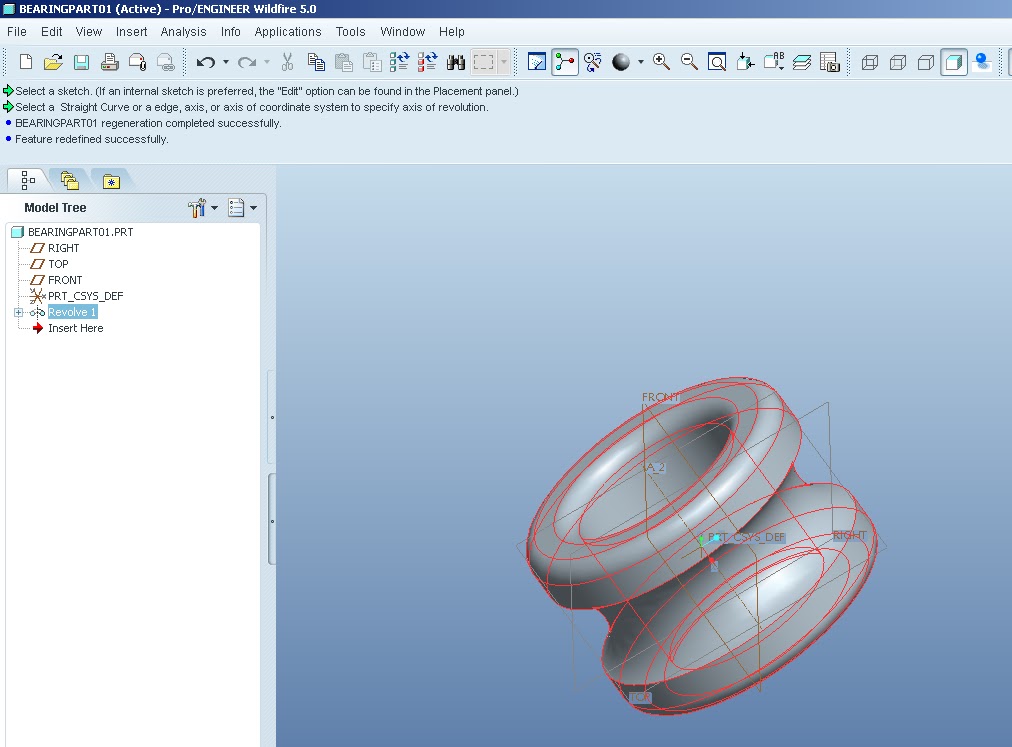

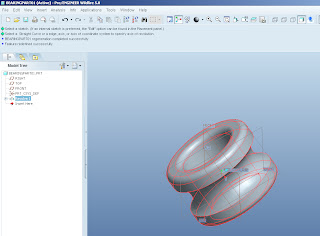

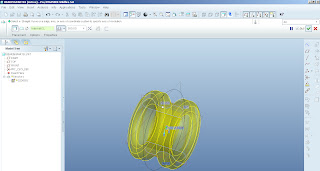

    • The final design I got is here!!!!



    Thats all folks......and any difficulties...ping me.....Please comment below on the same!!!
